Description

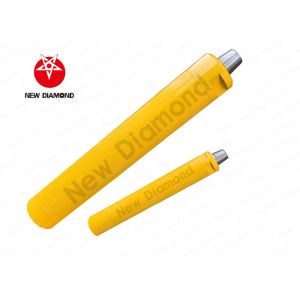

The new diamond dart impactor uses the latest drilling theory to design impactor, which enables the impactor to get the best energy transfer, fast drilling speed and low air consumption. The best quality of raw materials and the most advanced processing technology, stable performance and long life. Easy to use, easy to install and disassemble, easy to repair and easy to repair.
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe.
Applications
Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.
Specifications
| ND Series High Air Pressure DTH Hammers Without Foot Valve Technical Data |
| Length(Without Bit) | ND25A | ND35A | ND45A | ND45S | ND55A | ND55S |
| 872mm | 888mm | 1011mm | 986mm | 1110mm | 1110mm |
| Weight(Without Bit) | 16.00kg | 25.00kg | 43.20kg | 37.00kg | 69.00kg | 66.00kg |
| External Diameter | Ø71mm | Ø82mm | Ø99mm | Ø92mm | Ø126mm | Ø116mm |
| Bit Shank | ND25 | IR35 | COP44/DHD340 | COP44/DHD340 | COP54/DHD350R | COP54/DHD350R |
| Hole Range | Ø71-Ø90mm | Ø90-Ø115mm | Ø110-Ø135mm | Ø105-Ø120mm | Ø135-Ø155mm | Ø127-Ø145mm |
| Connection Thread | T42x10x1.5 | API2 3”/8REG | API2 3”/8REG | API2 3”/8REG | API2 3”/8REG API3 1”/2REG API2 7”/8REG 2 7”/8 IF | API2 3”/8REG API3 1”/2REG API2 7”/8REG |
| Working Pressure | 1.0-1.5Mpa | 1.0-1.5Mpa | 1.2-2.0Mpa | 1.2-2.0Mpa | 1.3-2.3Mpa | 1.3-2.3Mpa |
| Impact Rate at 14 Bar | 25HZ | 25HZ | 30HZ | 30HZ | 28HZ | 28HZ |
| Recommended Rotation Speed | 22-35r/min | 25-40r/min | 22-35r/min | 25-40r/min | 20-35r/min | 25-35r/min |
| Air Consumption | 1.0Mpa:4.0m³/min 1.5Mpa:6.0m³/min | 1.0Mpa:3.8m³/min 1.5Mpa:7.5m³/min | 1.0Mpa:6.0m³/min 1.8Mpa:10.0m³/min 2.4Mpa:15.0m³/min | 1.8Mpa:8.0m³/min 2.4Mpa:13.0m³/min | 1.0Mpa:7.0m³/min 1.8Mpa:14.0m³/min 2.4Mpa:19.0m³/min | 1.0Mpa:7.0m³/min 1.8Mpa:13.5m³/min 2.4Mpa:18.0m³/min |
| ND Series High Air Pressure DTH Hammers Without Foot Valve Technical Data |
| Length(Without Bit) | ND55C(A) | ND65A | ND75A | ND85A | ND1120A |
| 1102mm | 1238mm | 1258mm | 1359mm | 1880mm |
| Weight(Without Bit) | 68.00kg | 98.00kg | 120.00kg | 175.00kg | 474.00kg |
| External Diameter | Ø126mm | Ø142/Ø146mm | Ø165mm | Ø180/Ø185mm | Ø275mm |
| Bit Shank | ND55C/DHD350Q | COP64/DHD360 | COP64/DHD360 | COP84/DHD380 | CDHD1120 |
| Hole Range | Ø135-Ø155mm | Ø155-Ø203mm | Ø175-Ø216mm | Ø195-Ø254mm | Ø305-Ø445mm |
| Connection Thread | API2 3”/8REG API3 1”/2REG API2 7”/8REG | API3 1”/2REG | API3 1”/2REG | API4 1”/2REG | API6 5”/8REG |
| Working Pressure | 1.3-2.3Mpa | 1.5-3.0Mpa | 1.5-3.0Mpa | 1.5-3.0Mpa | 2.0-3.5Mpa |
| Impact Rate at 17 Bar | 28HZ | 25HZ | 23HZ | 22HZ | 20HZ |
| Recommended Rotation Speed | 22-35r/min | 20-30r/min | 20-30r/min | 15-25r/min | 15-25r/min |
| Air Consumption | 1.0Mpa:8.0m³/min 1.8Mpa:6.0m³/min 2.4Mpa:19.0m³/min | 1.0Mpa:9.0m³/min 1.8Mpa:18.0m³/min 2.4Mpa:26.0m³/min | 1.0Mpa:11.0m³/min 1.8Mpa:20.0m³/min 2.4Mpa:28.0m³/min | 1.0Mpa:12.0m³/min 1.8Mpa:22.0m³/min 2.4Mpa:28.0m³/min | 1.0Mpa:28.0m³/min 1.8Mpa:50.0m³/min 2.4Mpa:71.0m³/min |
| NM Series High Air Pressure DTH Hammers Without Foot Valve Technical Data |
| Length(Without Bit) | NM4A | NM5A | NM6A | NM8A |
| 1005mm | 1110mm | 1161mm | 1338mm |
| Weight(Without Bit) | 40.00kg | 68.50kg | 90.00kg | 176.00kg |
| External Diameter | Ø99mm | Ø126mm | Ø142mm Ø144mm Ø146mm Ø148mm | Ø180/Ø185mm |
| Bit Shank | NM4 | NM5 | NM6 | NM8 |
| Hole Range | Ø110-Ø135mm | Ø155-Ø190mm | Ø155-Ø203mm | Ø195-Ø254mm |
| Connection Thread | API2 3”/8REG | API2 3”/8REG API3 1”/2REG API2 7”/8REG | API3 1”/2REG API2 7”/8REG 2 7”/8 IF | API4 1”/2REG |
| Working Pressure | 1.2-2.0Mpa | 1.3-2.3Mpa | 1.5-2.5Mpa | 1.5-3.0Mpa |
| Impact Rate at 17 Bar | 30HZ | 28HZ | 25HZ | 22HZ |
| Recommended Rotation Speed | 25-40r/min | 20-35r/min | 20-30r/min | 15-25r/min |
| Air Consumption | 1.0Mpa:5.0m³/min 1.8Mpa:9.0m³/min 2.4Mpa:14.0m³/min | 1.0Mpa:7.0m³/min 1.8Mpa:14.0m³/min 2.4Mpa:19.0m³/min | 1.0Mpa:9.0m³/min 1.8Mpa:18.0m³/min 2.4Mpa:26.0m³/min | 1.0Mpa:12.0m³/min 1.8Mpa:22.0m³/min 2.4Mpa:28.0m³/min |
| NQL Series High Air Pressure DTH Hammers Without Foot Valve Technical Data |
| Length(Without Bit) | NQL4A | NQL5A | NQL6A | NQL8A | NQL95A |
| 1070mm | 1090mm | 1183mm | 1330mm | 1340mm |
| Weight(Without Bit) | 40.00kg | 67.00kg | 90.00kg | 171.00kg | 203.00kg |
| External Diameter | Ø99mm | Ø126 mm | Ø165mm | Ø180/Ø185mm | Ø203mm |
| Bit Shank | QL40 | QL50 | QL600 | QL80 | QL80 |
| Hole Range | Ø110-Ø135mm | Ø155-Ø203mm | Ø155-Ø203mm | Ø195-Ø254mm | Ø216-Ø254mm |
| Connection Thread | API2 3”/8REG | API2 3”/8REG API3 1”/2REG API2 7”/8REG | API3 1”/2REG | API4 1”/2REG | API4 1”/2REG |
| Working Pressure | 1.2-2.0Mpa | 1.3-2.3Mpa | 1.5-2.5Mpa | 1.5-3.0Mpa | 1.8-3.0Mpa |
| Impact Rate at 17 Bar | 30HZ | 28HZ | 25HZ | 22HZ | 22HZ |
| Recommended Rotation Speed | 20-30r/min | 20-35r/min | 20-30r/min | 15-25r/min | 15-25r/min |
| Air Consumption | 1.0Mpa:5.0m³/min 1.8Mpa:9.0m³/min 2.4Mpa:14.0m³/min | 1.0Mpa:7.0m³/min 1.8Mpa:14.0m³/min 2.4Mpa:19.0m³/min | 1.0Mpa:9.0m³/min 1.8Mpa:18.0m³/min 2.4Mpa:26.0m³/min | 1.0Mpa:12.0m³/min 1.8Mpa:22.0m³/min 2.4Mpa:28.0m³/min | 1.0Mpa:16.0m³/min 1.8Mpa:28.0m³/min 2.4Mpa:39.0m³/min |
| NSD Series High Air Pressure DTH Hammers Without Foot Valve Technical Data |
| Length(Without Bit) | NSD4A | NSD5A | NSD6A | NSD8A | NSD10A | NSD12A |
| 1012mm | 1090mm | 1011mm | 986mm | 1110mm | 1110mm |
| Weight(Without Bit) | 40.00kg | 70.00kg | 43.20kg | 37.00kg | 69.00kg | 66.00kg |
| External Diameter | Ø99mm | Ø126mm | Ø146mm | Ø180/Ø185mm | Ø226mm | Ø275mm |
| Bit Shank | SD4 | SD5 | SD6 | SD8 | SD10 | SD12 |
| Hole Range | Ø110-Ø135mm | Ø155-Ø190mm | Ø155-Ø203mm | Ø195-Ø254mm | Ø254-Ø311mm | Ø305-Ø445mm |
| Connection Thread | API2 3”/8REG | API2 3”/8REG API3 1”/2REG API2 7”/8REG | API3 1”/2REG | API4 1”/2REG | AP6 5”/8REG | API6 5”/8REG |
| Working Pressure | 1.2-2.0Mpa | 1.3-2.3Mpa | 1.5-2.5Mpa | 1.5-3.0Mpa | 2.0-3.5Mpa | 2.0-3.5Mpa |
| Impact Rate at 17 Bar | 30HZ | 28HZ | 25HZ | 22HZ | 20HZ | 20HZ |
| Recommended Rotation Speed | 25-40r/min | 20-35r/min | 20-30r/min | 15-25r/min | 15-25r/min 20-35r/min | 15-25r/min |
| Air Consumption | 1.0Mpa:6.0m³/min 1.8Mpa:9.0m³/min 2.4Mpa:14.0m³/min | 1.0Mpa:7.0m³/min 1.8Mpa:14.0m³/min 2.4Mpa:19.0m³/min | 1.0Mpa:9.0m³/min 1.8Mpa:18.0m³/min 2.4Mpa:26.0m³/min | 1.0Mpa:12.0m³/min 1.8Mpa:22.0m³/min 2.4Mpa:28.0m³/min | 1.8Mpa:14.0m³/min 2.4Mpa:65.0m³/min | 1.0Mpa:28.0m³/min 1.8Mpa:50.0m³/min 2.4Mpa:71.0m³/min |
| N Series High Air Pressure DTH Hammers Without Foot Valve Technical Data |
| Length(Without Bit) | N100A | N120A | N125A |
| 1545mm | 1880mm | 1880mm |
| Weight(Without Bit) | 305.00kg | 475.00kg | 470.00kg |
| External Diameter | Ø226mm | Ø275mm | Ø275mm |
| Bit Shank | NUMA100 | NUMA120 | NUMA125 |
| Hole Range | Ø254-Ø311mm | Ø305-Ø445mm | Ø305-Ø445mm |
| Connection Thread | API4 1/2REG API5 1”/2REG | API5 1/2REG API6 5”/8REG | API5 1/2REG API6 5”/8REG |
| Working Pressure | 2.0-3.5Mpa | 2.0-3.5Mpa | 2.0-3.5Mpa |
| Impact Rate at 17 Bar | 20HZ | 20HZ | 20HZ |
| Recommended Rotation Speed | 15-25r/min | 15-25r/min | 15-25r/min |
| Air Consumption | 1.0Mpa:22.0m³/min 1.8Mpa:40.0m³/min 2.4Mpa:65.0m³/min | 1.0Mpa:28.0m³/min 1.8Mpa:50.0m³/min 2.4Mpa:71.0m³/min | 1.0Mpa:28.0m³/min 1.8Mpa:50.0m³/min 2.4Mpa:71.0m³/min |
Feature Advantage
Characteristic advantage
1 adopts the industry's leading heat treatment technology, and the steel hardness and wayward products are in the leading position.
2 alloy teeth adopt professional technology to greatly improve the strength of alloy teeth.
3 perfect after-sales security system and after-sales service tracking, the perfect solution to any problem of customers.
| Item Description |
| 1,Top Sub | 6,Air Distributor | 11,“O” Ring Of Stop Ring |
| 2,“O” Ring Of Top Sub | 7,Internal Cylinder | 12,Stop Ring |
| 3,Breakout Ring | 8,Piston | 13,Breakout Ring |
| 4,Chenck Valve | 9,External Cylinder | 14,Drive Chuck |
| 5,Spring | 10,Guided Sleeve | 15,Drill Bit |
